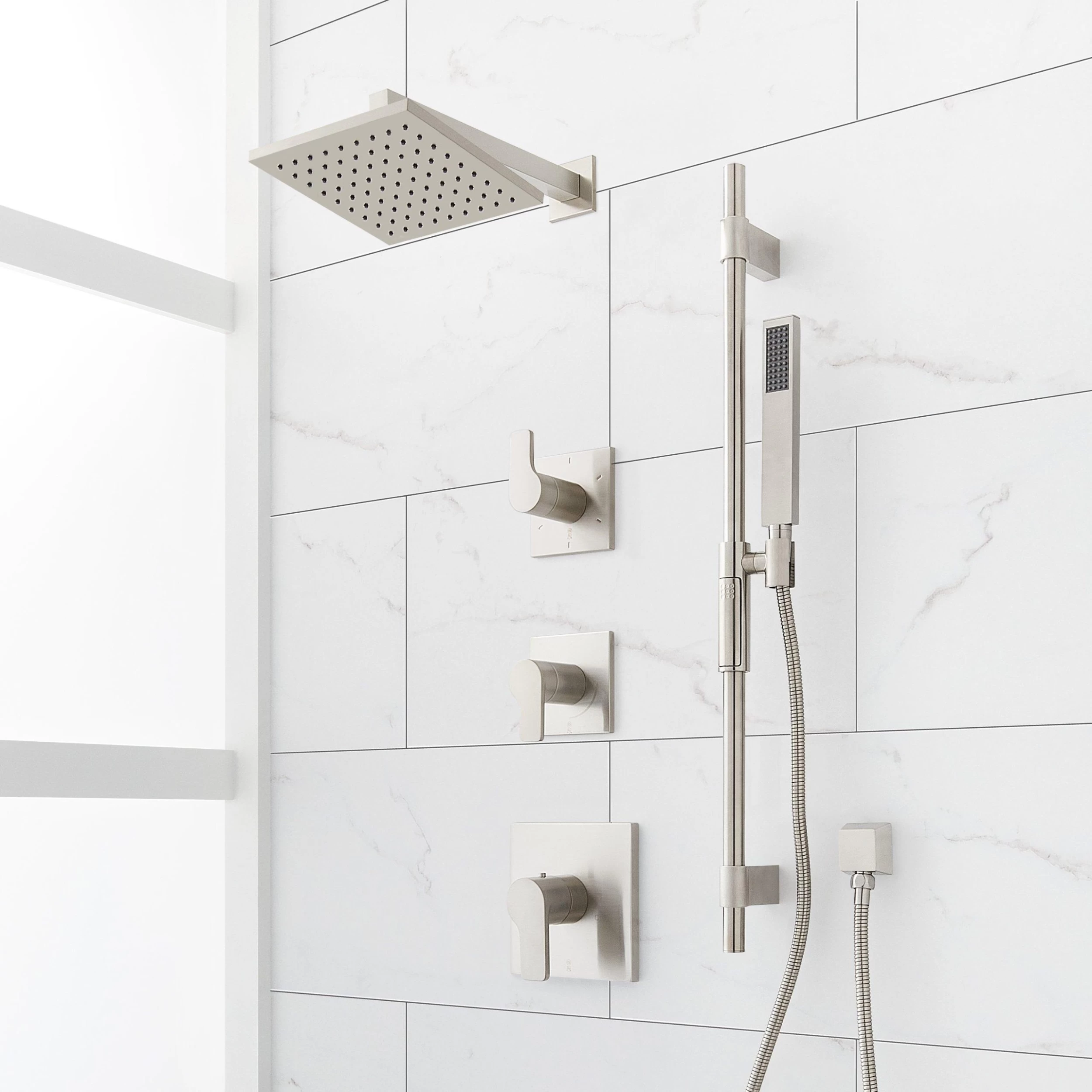

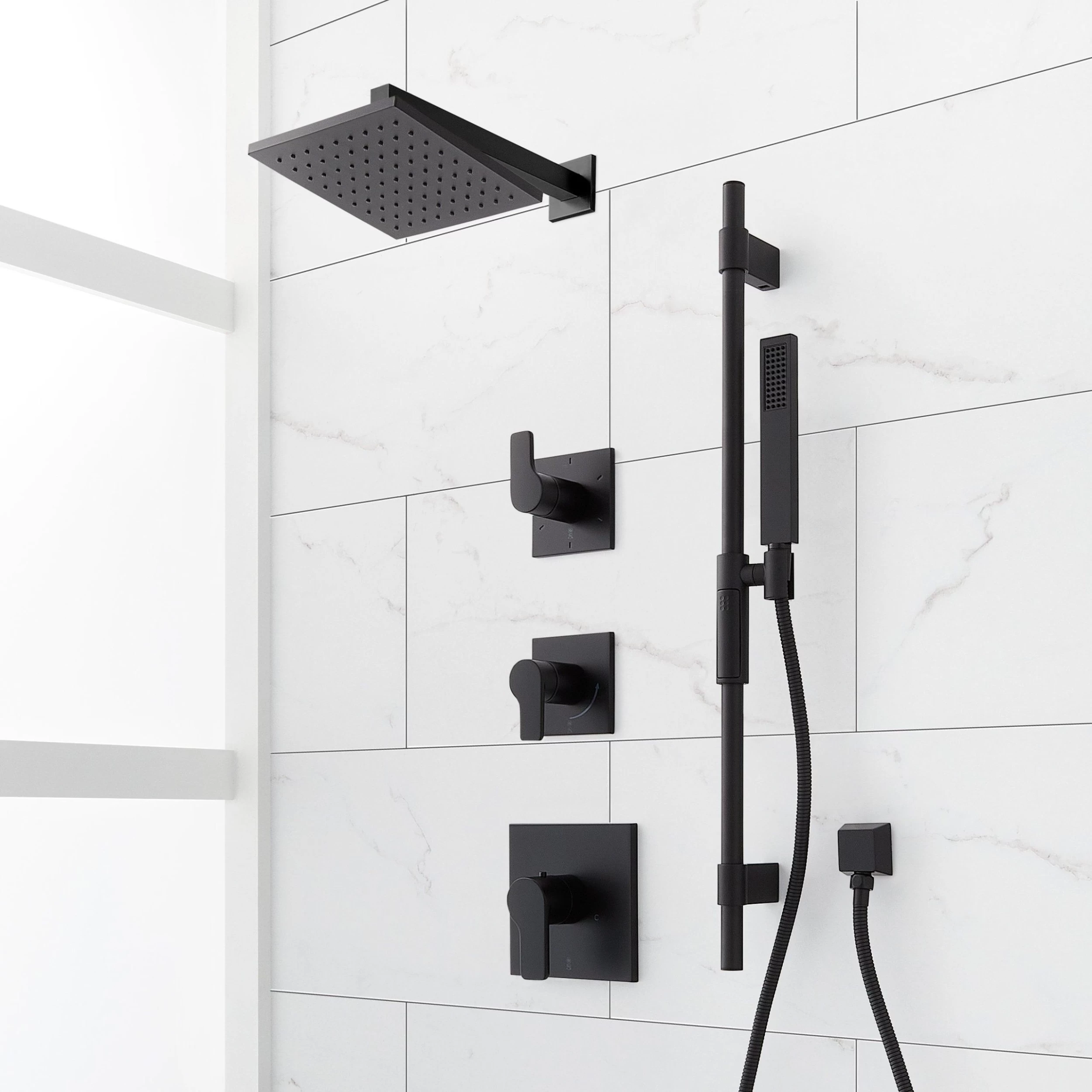

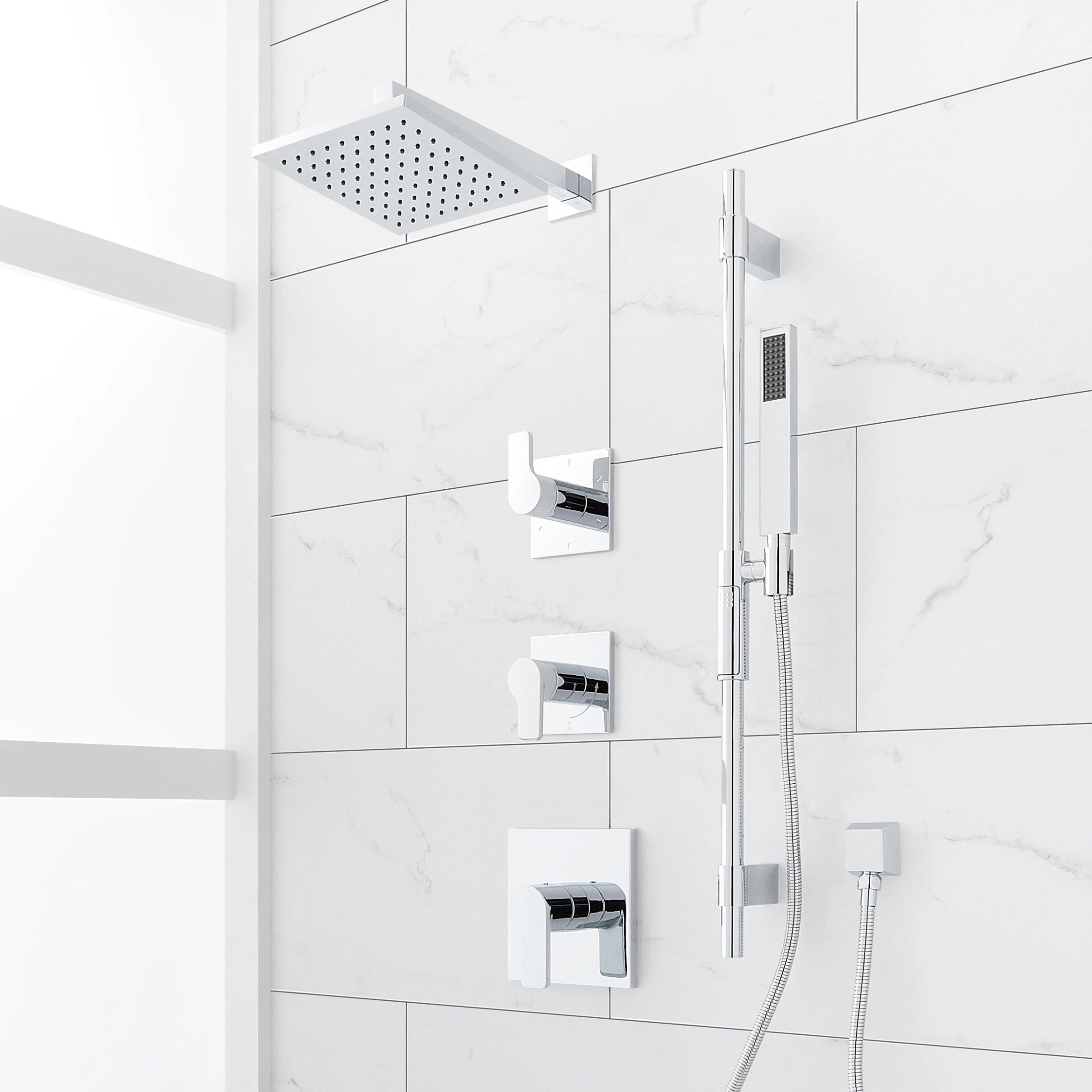

Achieve understated luxury with the Hibiscus Thermostatic Shower System with Slide Bar and Hand Shower. Designed with sleek, angular silhouettes, this system is minimally invasive while boasting a smart, modern look. A rainfall showerhead and single-lever thermostatic valve work together to deliver a spa-like experience, maintaining the perfect water temperature every time. Use the convenient hand shower for those hard-to-reach areas or a more direct stream, featured with an easily adjustable slide bar for accommodating various heights. Built to handle daily use, the Hibiscus is available in a variety of stunning rust-resistant finishes.
- Thermostatic technology keeps shower temperature within 1 degree Celsius.
- Temperature outlet factory calibrated to 104 degrees Fahrenheit and can be easily adjusted up or down to user’s comfort level.
- Six total settings allow for shared water flow between outlets, giving you the ability to use two functions at once.
- Metal handles.

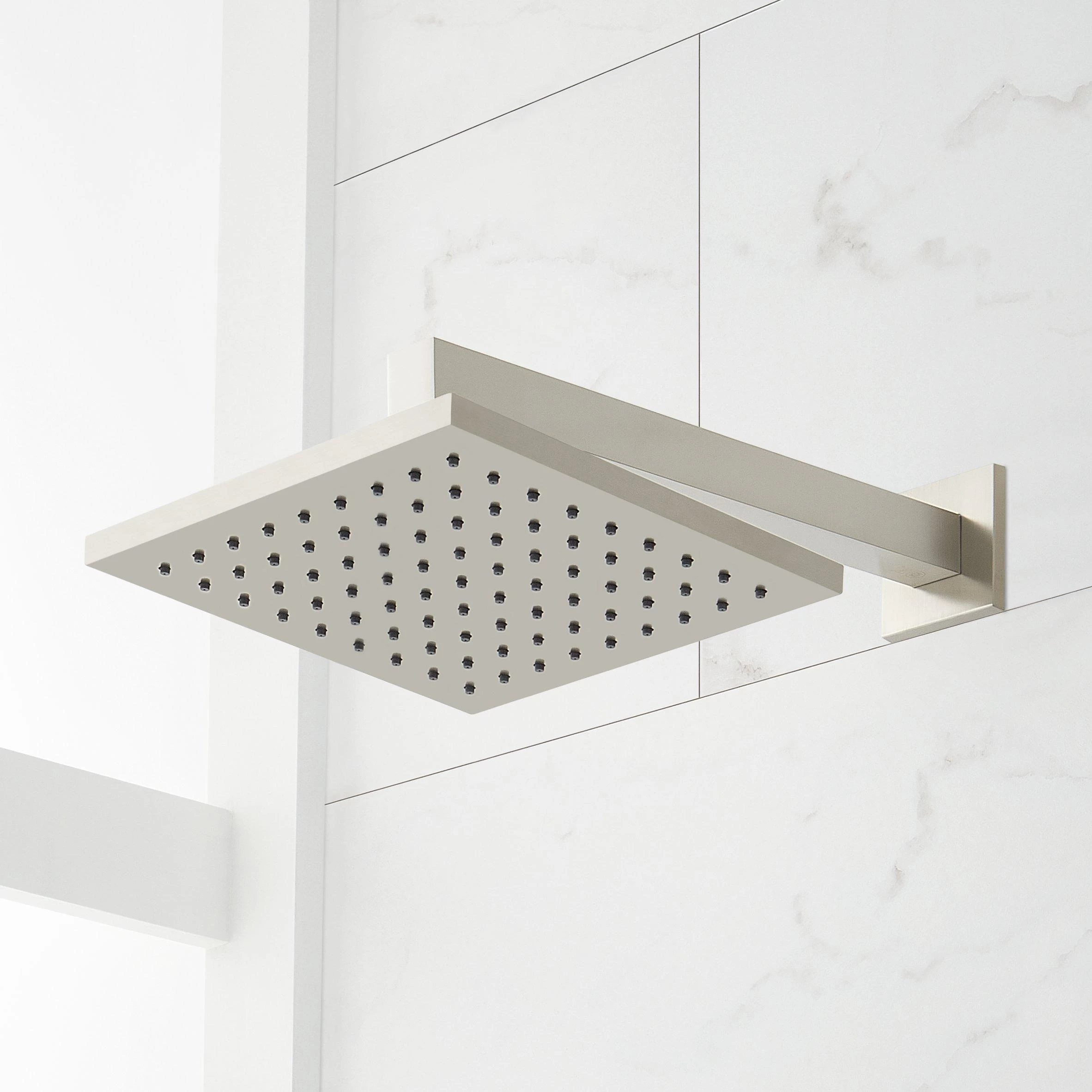

- Single function shower head (full spray) with easy-clean silicone nozzles.

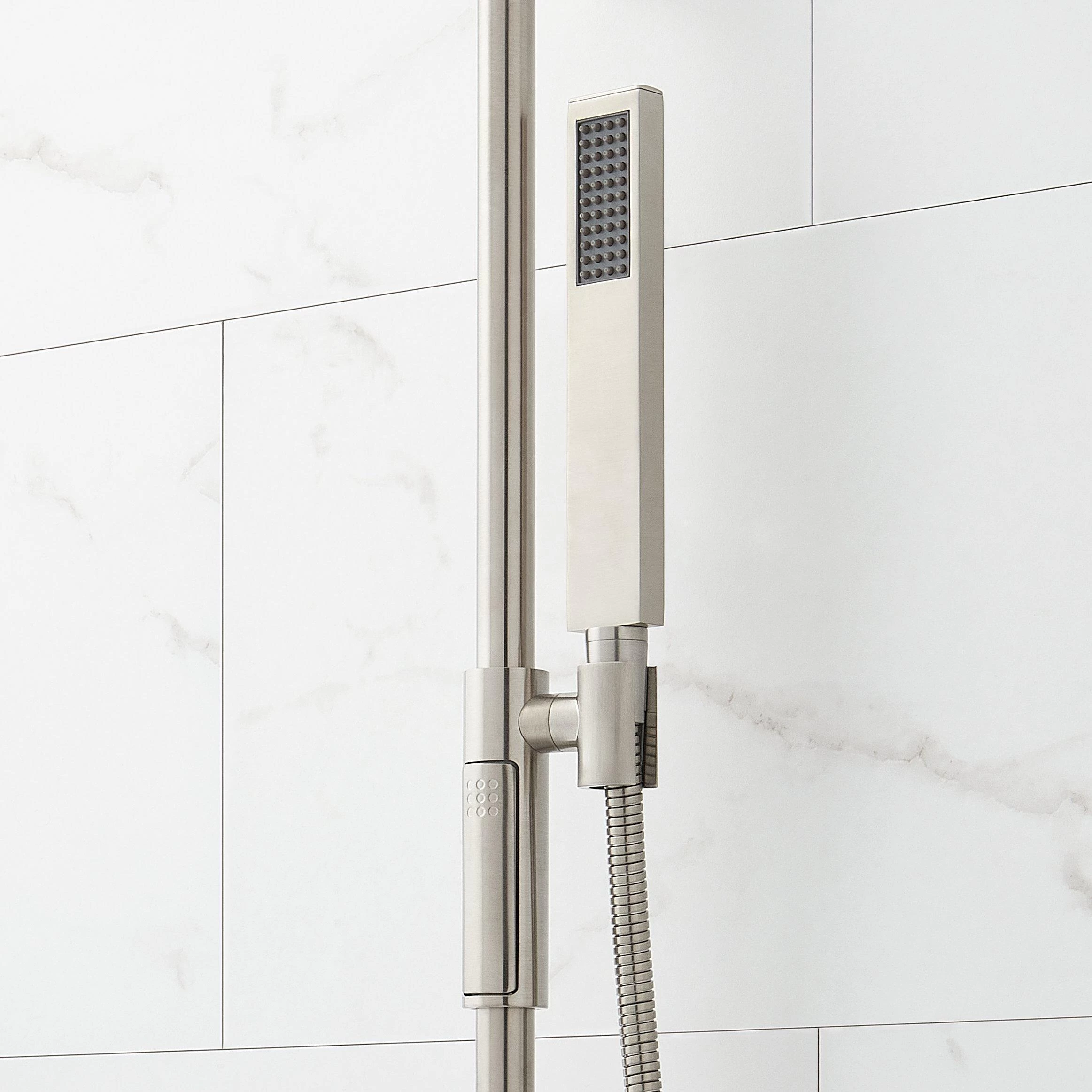

- Single function hand shower.
- 60″ – 72″ stretchable metal shower hose.
- Adjustable angle for hand shower mount.
- Must be installed in accordance with provided installation instructions.
- Recommended valve installation depth 1-5/8″ to 2-3/8″
- Included Rough-in valves:

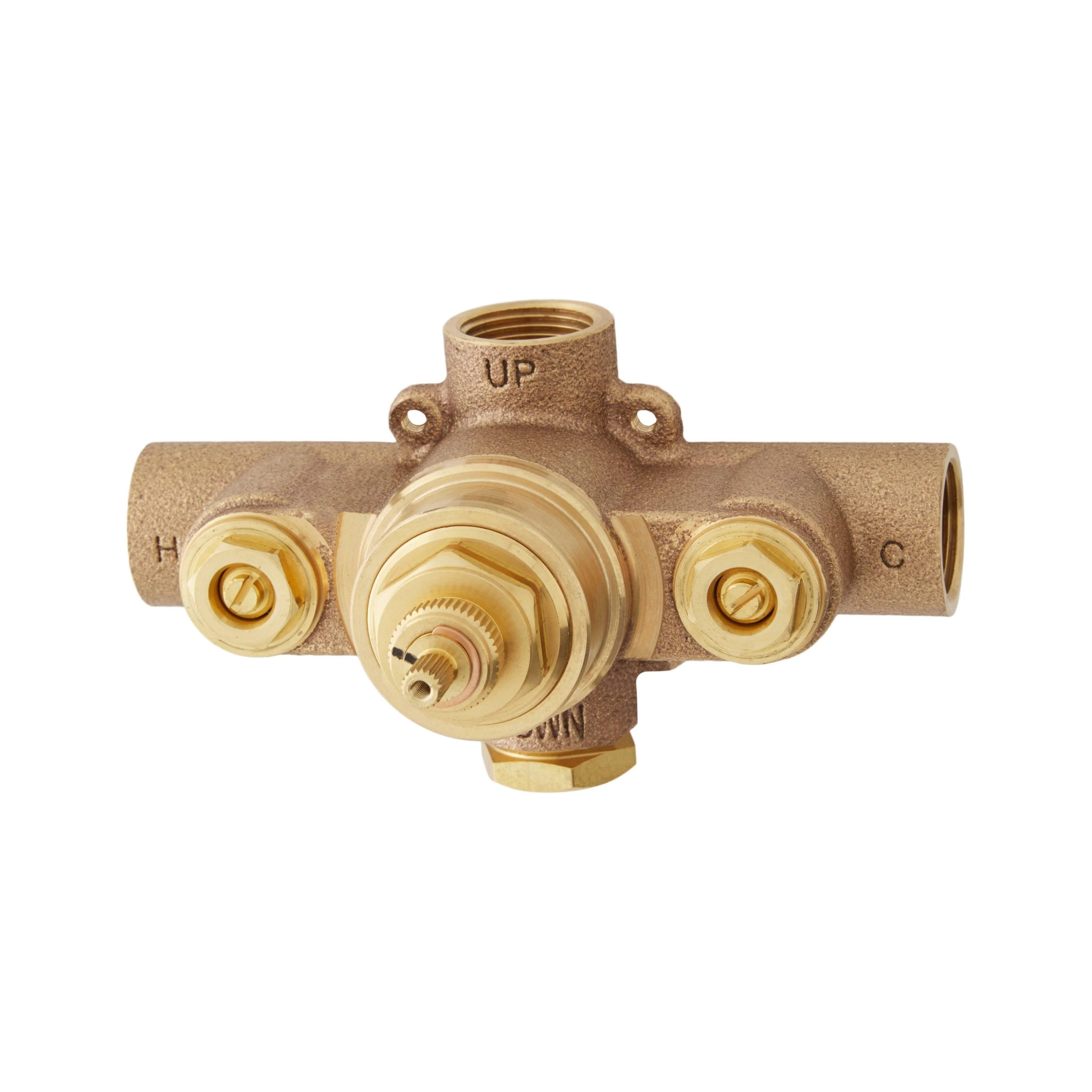

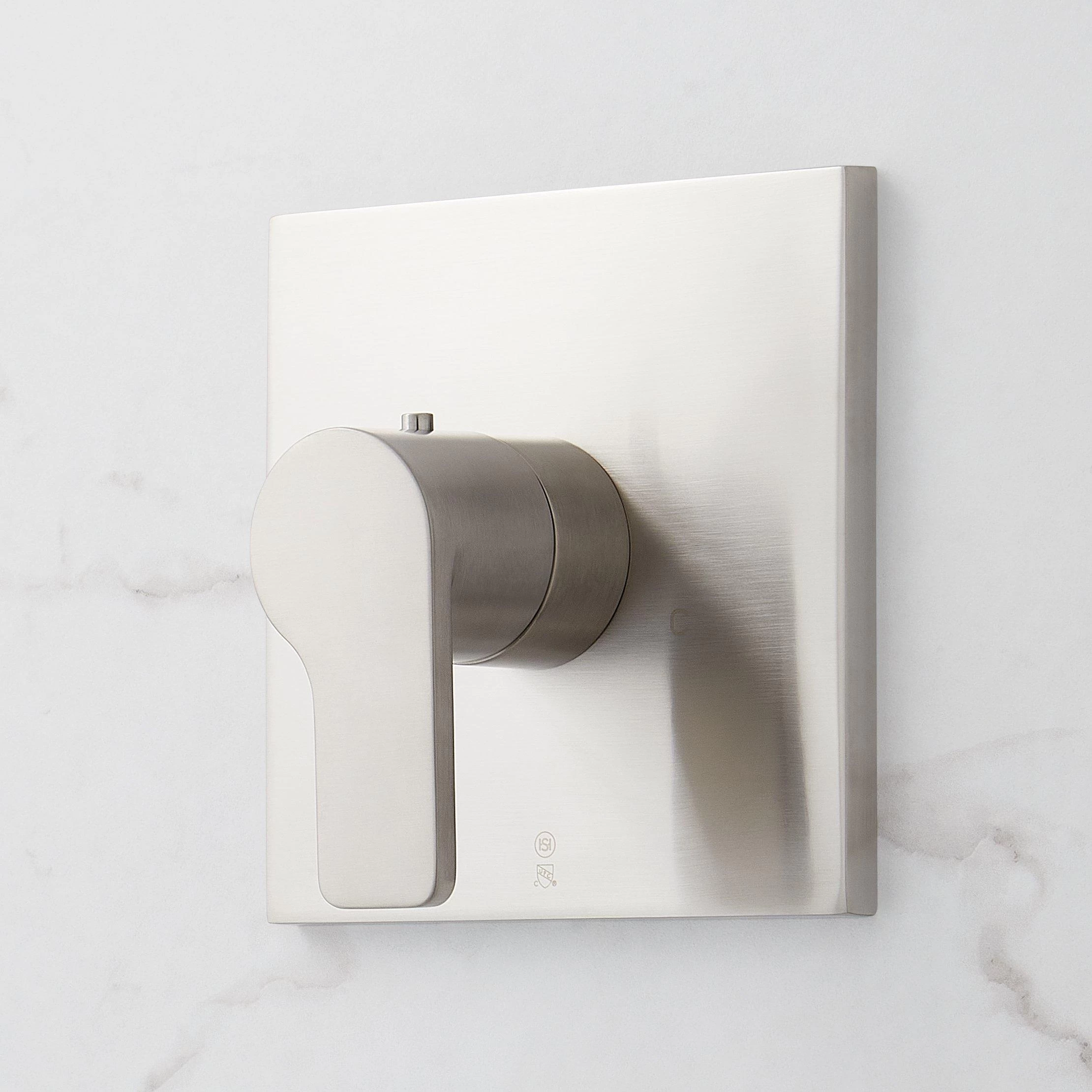

- Thermostatic rough-in valve features scald guard protection, high temperature limit stop, integral water stops and check valve, a ceramic cartridge, and a bronze valve body.

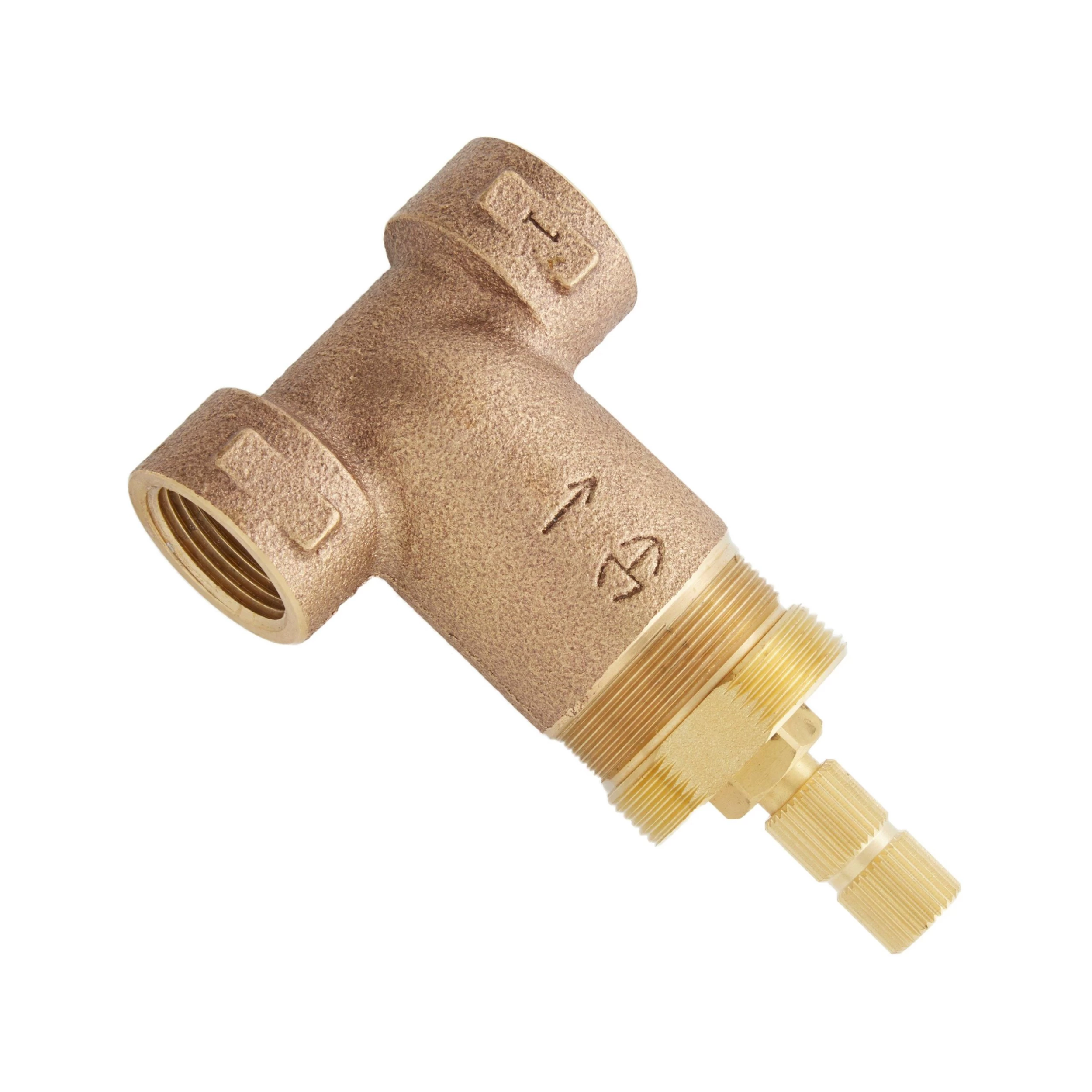

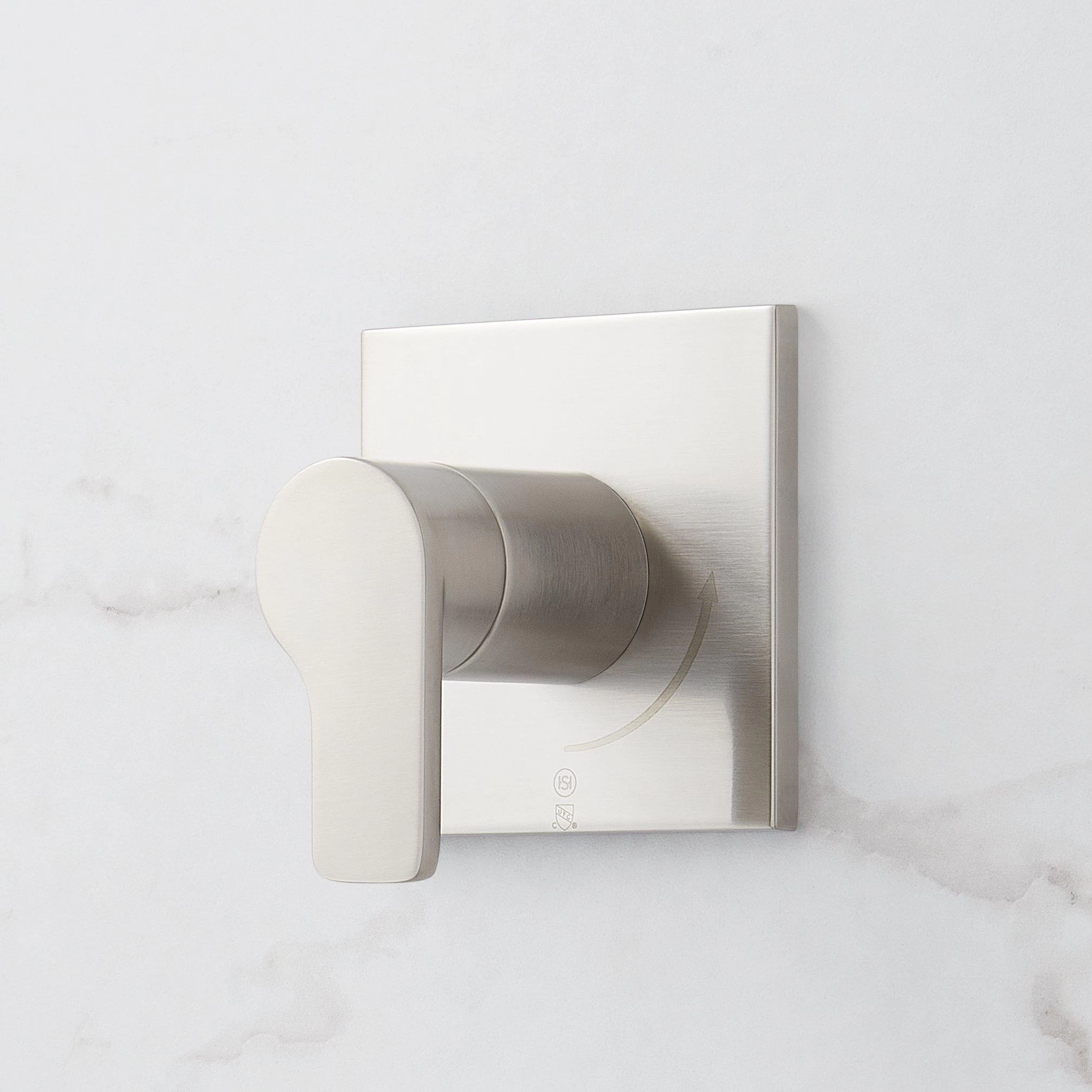

- Volume control rough-in valve features a ceramic disc cartridge and brass valve body.

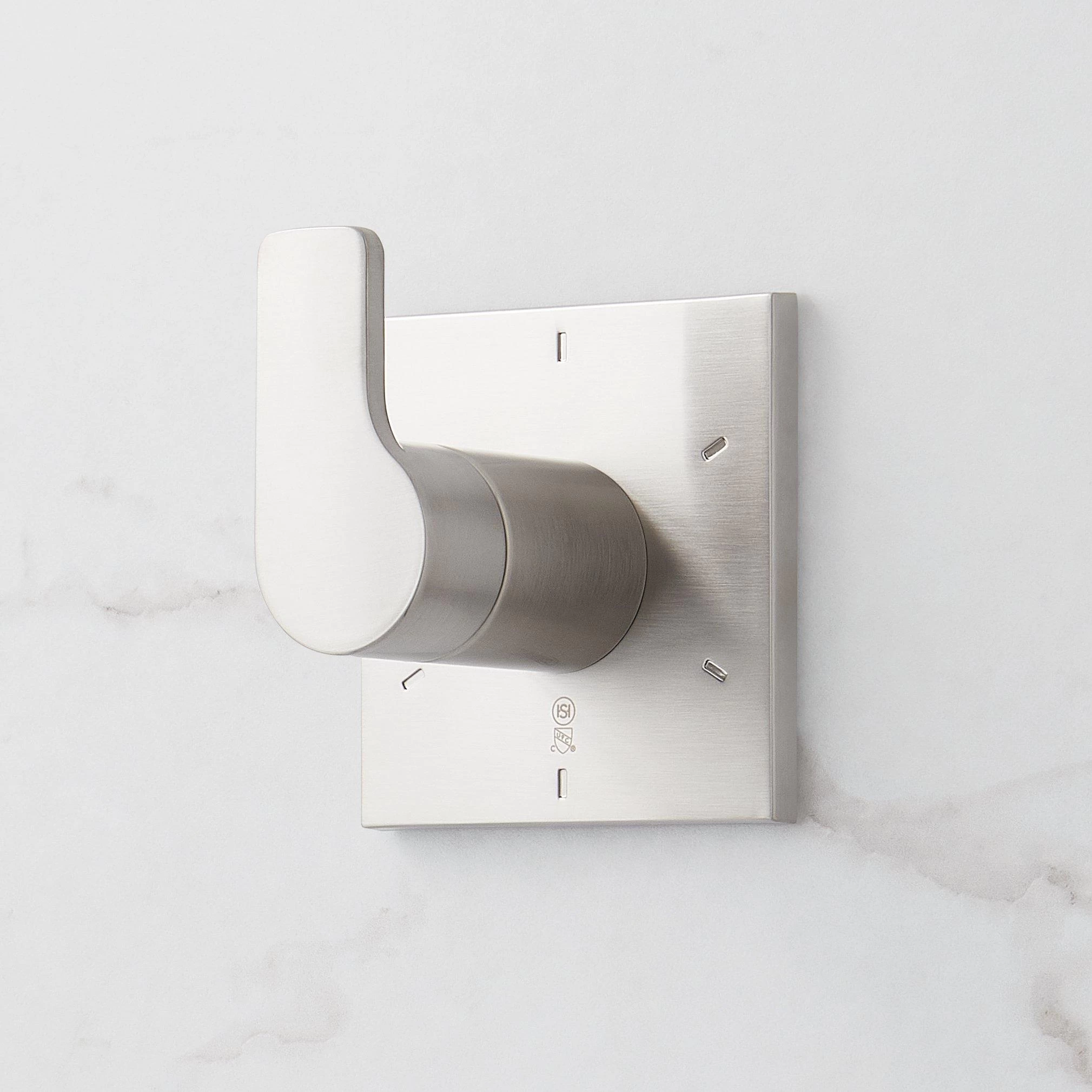

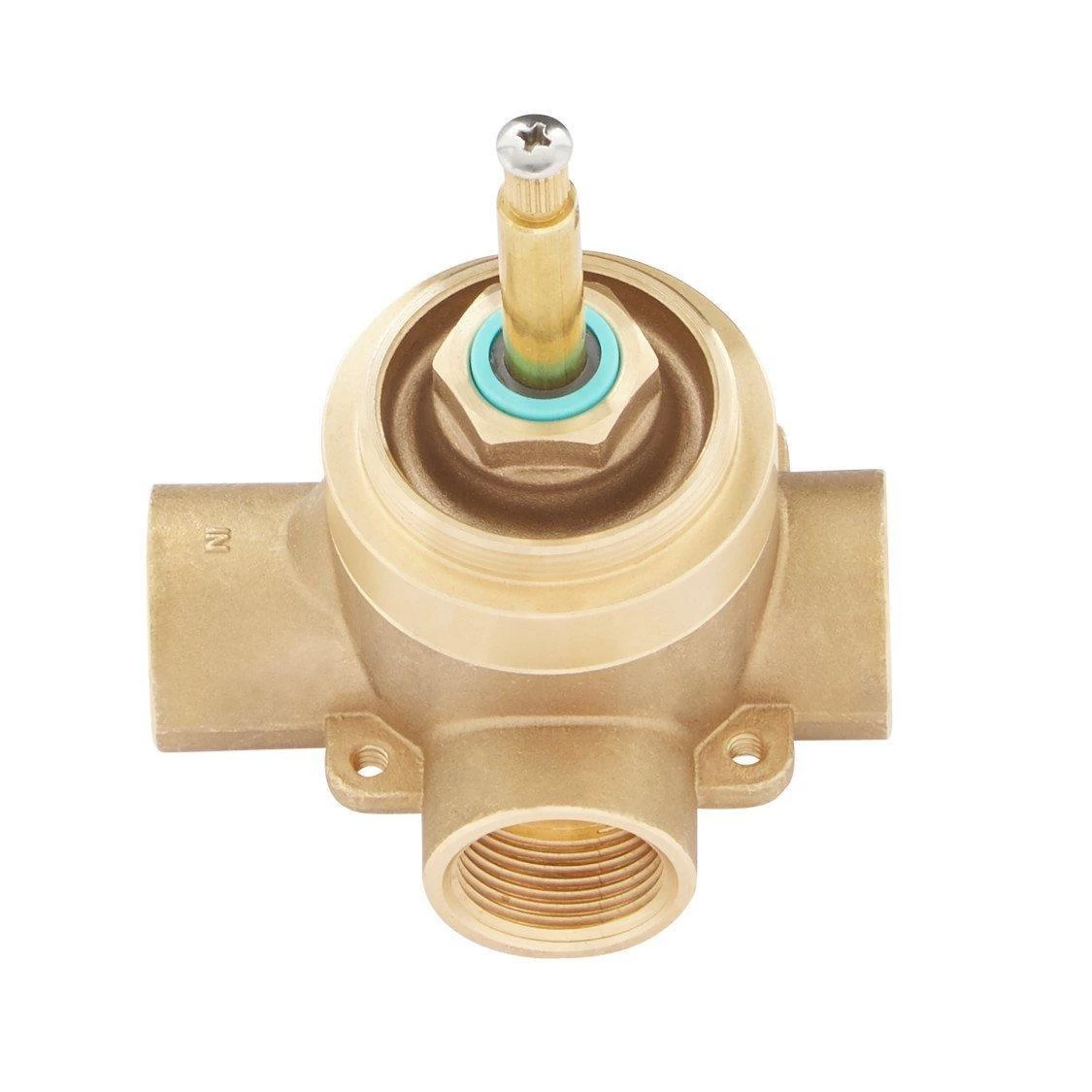

- Diverter valve features a ceramic disc cartridge and brass valve body. An available Single-Function Diverter valve Cartridge restricts water flow to one outlet at a time.
Features
Product Type Shower Systems & Faucets
Diverter Included Yes
Features Thermostatic
Handle Type Lever
Hand Shower Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
Hand Shower Material Brass
Installation Type Wall
Mounting Hardware Included Yes
Number of Shower Heads 1
Shower Arm Included Yes
Shower Head Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
Shower Head Installation Type Wall-Mount
Shower Head Material 304-Grade Stainless Steel
Shower Head Spray Rainfall
Shower Head Swivel Yes
Dimensions
Hand Shower Hose Length 60″
Hand Shower Length 8-7/16″
Shower Arm Extension 12″
Shower Arm Height 2-3/8″
Shower Head IPS 1/2″
Shower Head Length 11-3/4″
Shower Head Width 11-3/4″
Slide Bar Length 30″
Valve Trim Height 6-11/16″
Valve Trim Width 6-11/16″
Trilogie Alt 1
null
null
SKU
953894
SH953894
953894
SH953894
Component SKUs
null
null
Available
